Street Party

The challenge here is to find as many routes as you can for a fence to go so that this town is divided up into two halves, each with 8 blocks.
Exploring and noticing Working systematically Conjecturing and generalising Visualising and representing Reasoning, convincing and proving
Being curious Being resourceful Being resilient Being collaborative
I am told that in the United States, where perhaps some of you might live or might have been, there are some cities and towns where the streets are arranged in very straight lines and cross each other at right angles. There are many mathematics problems and challenges which use this idea and today we are going to think about having a street party or street parade or festival.

Street Party

Street Party
Let's imagine that there is a small town made up of 16 blocks of flats, so a view from above might look a bit like this as a grid or picture:

The spaces in between the blocks are the roads running North/South and East/West.

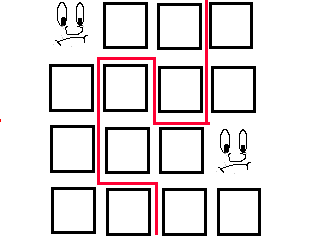

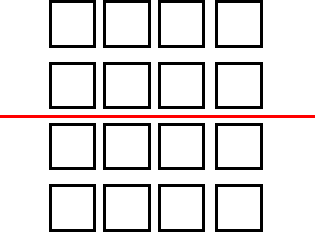

In this town, there are going to be two different parties on the same day which they want to keep separate. So they decide that they will put a fence down the middle of some roads to divide the town up into two equal parts. Because there is 16 block of buildings altogether we'll have to have 8 blocks in each half. Each of the two 8 blocks needs to be kept together with no block being separated from the rest of that group. So here are two examples that work but the third one does not as it separates the 16 into 3 (not 2) areas.



Street Party

Street Party

Street Party

Well, you can probably guess that the challenge is to find as many routes as you can for the fence to go so that the town is divided up into to halves, each with 8 blocks of course!

Find some good interesting ways of recording the different fence-routes you find.

When you've done a few there may be some things that you want to say about how you are finding the different routes and you may be able to prove that you've found them all! It's good to write such ideas down and when you send in your results make sure that you include the writing. [Don't worry about wonderful sentences or spelling!]

It's probably time to ask the usual question:- "I wonder what would happen if ...?''

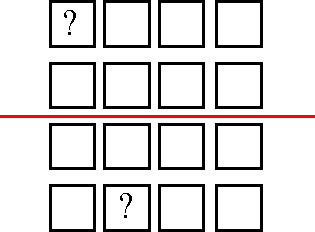

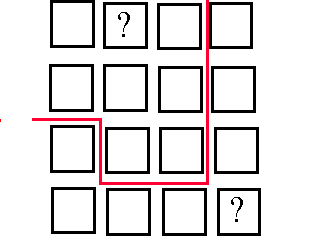

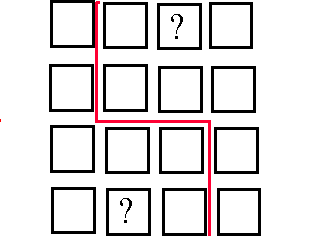

a) One child, Michael, recently suggested that it would be interesting to find out what would happen if there was a road blockage somewhere which meant you could not lay a fence down that bit of the road. It leads to some interesting thoughts and some trial routes.

Street Party
b) I could also suggest, "What would happen if the roads were laid out in triangular arrangements?''

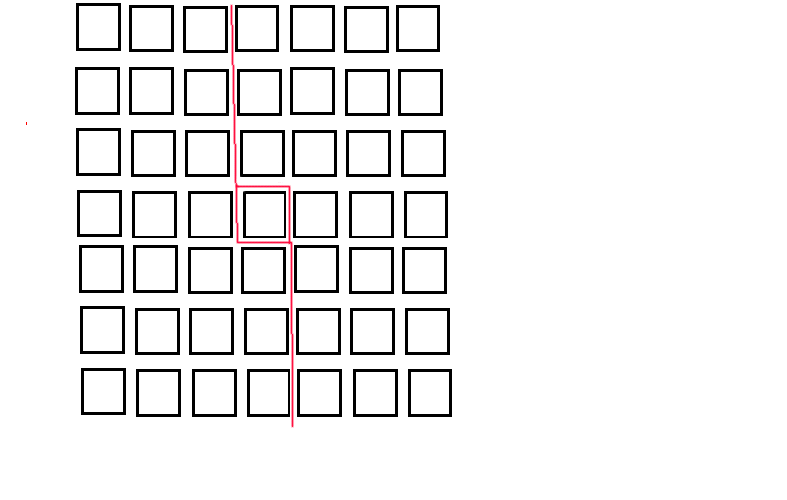

c) A very obvious question would be; "I wonder what would happen if there were more blocks of houses in the town so that the grid was 6 by 4, maybe, or a bigger square that would be 6 by 6?''
