# Tied up

How much of the field can the animals graze?

## Problem

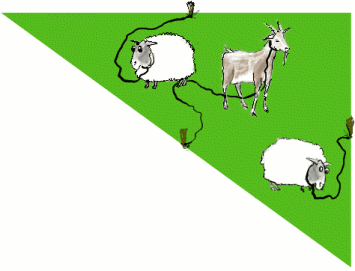

At the midpoint of each side is a post. Horace the goat is tied to the midpoint of the hypotenuse.

The two sheep, Sid and Sadie, are tied to the midpoints of the other two sides.

Each rope is just exactly long enough to allow the animal to reach the two vertices on the side to which it is tied.

Which animal can graze the largest area of grass?

What proportion of the field is it able to graze?

## Student Solutions

**Neither of the sheep can reach all of the points in the field:****Showing why using circles**


Because the triangle is right-angled, the red side is a tangent to the red circle. So the sheep in the red circle can't reach any other points on the red side, because the tangent only touches the circle once.

Similarly the blue side is a tangent to the blue circle, so the sheep in the blue circle can't reach any other points on the blue side.

**Showing why using triangles**

If either sheep can reach all of the points in the field, then that sheep would be able to reach the vertex opposite the place it is tied.

In the diagrams below, the solid lines represent the lengths of the ropes, and the dotted lines represent the distance to the opposite vertex.



The blue and red triangles shaded are both right-angled triangles, since they both contain the right angle from the original triangle. But the dotted lines are the hypotenuses - so they must be longer than the ropes. So neither sheep can reach all of the points in the field.

**The goat can reach all of the points in the field:**

**Explanation using circle theorems**

A circle centred at the midpoint of the hypotenuse marks the boundary of the area the goat can reach.

Will the vertex at the right angle be inside, outside or on this circle?




The hypotenuse of the triangle is the diameter of the circle, so the right angle is at the circumference.

This shows that the goat can just reach the far vertex, and therefore the whold field fits within reach of the goat's rope.

**Explanation using triangles, which also proves the circle theorem used above**


Drawing some horizontal and verical lines (parallel to the triangles sides), we can split the triangle into four smaller triangles, each similar to the whole triangle, as shown:


The red line segments are all of equal length, and so are the green ones, so since the four little triangles all have right angles, they are all congruent.

This means the dotted line is the same length as the goat's rope.

The hypotenuse of each little triangle is the longest line within the triangle, so since the goat's rope is as long as this hypotenuse, the goat can reach all the points in the field.
