Problem

A network is a collection of points and lines between the points. The points are called vertices and the lines which connect them are called edges. Each edge has a vertex at each end.

Here are some possible networks:

A connected network is a network in which we can get from any vertex to any other by travelling along the edges.

A planar network is one which can be redrawn in such a way that no edges cross each other.

A cyclic network is one where there is a closed circuit or loop somewhere in the network. A network with no closed circuits is an acyclic network.

Describe each of the networks above with the words connected/disconnected, planar/non-planar and cyclic/acyclic.

1. Disconnected, Planar, Acyclic

2. Disconnected, Non-planar, Cyclic

3. Connected, Planar, Cyclic

4. Connected, Planar, Acyclic (note that this can be redrawn in such a way that the edges do not cross)

5. Connected, Planar, Acyclic

6. Connected, Planar, Cyclic

Draw a network which is Disconnected, Planar and Cyclic?

Can you draw a network which is Non-planar and Acyclic?

A network is called a tree if it is connected, planar and acyclic (like networks 4 and 5 above).

Investigate the number of edges in trees with different numbers of vertices.

Can you prove a relationship between the number of vertices in a tree and the number of edges?

What happens to the tree when you add an extra edge?

Remember that the network must not be cyclic.

There are two different trees which have 4 vertices.

Note that the following two trees do not count as different as we can stretch each of them out as a straight line.

How many different trees can you draw with 5 vertices?

There are three different trees with 5 vertices

The degree of a vertex is the number of edges that meet at the vertex.

Draw all the possible trees with 2, 3 and 4 vertices.

Label the vertices on your drawings with the degree of each vertex.

Do the same for your trees with 5 vertices.

What can you say about the sum of the degrees of the vertices in trees with 2, 3, 4, 5, ... $n$ vertices?

Can you explain what you have noticed?

How do the number of vertices relate to the number of edges?

How does each edge contribute to the degrees of the vertices?

How many different trees can you draw with 6 vertices?

There are five different ways you can write 10 as the sum of six positive integers:

1, 1, 1, 1, 1, 5

1, 1, 1, 1, 2, 4

1, 1, 1, 1, 3, 3

1, 1, 1, 2, 2, 3

1, 1, 2, 2, 2, 2

One of these combinations produces more than one tree.

How many trees can you draw with 7 vertices?

How can you use your results so far to convince yourself that you have found all of the possible trees?

Student Solutions

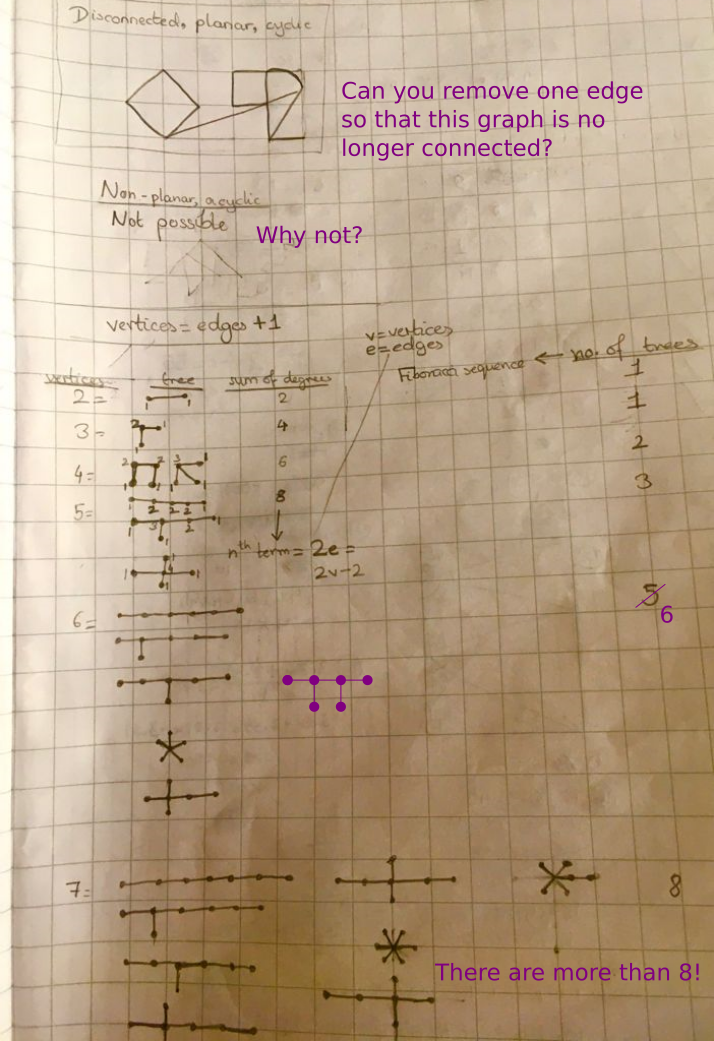

Nayanika from The Tiffin Girls' School in the UK sent in a solution which is an excellent start to this difficult problem. Click here to see Nayanika's solution with some notes about how the solution could continue.

John from Calthorpe Park Fleet in the UK built on Nayanika's ideas. Click to see John's solution.

Click twice on the images to enlarge them.

Below the rest of John's solution is a rigorous proof that the number of edges in a network tree is 1 less than the number of vertices, submitted by Teiva. This is the rest of John's work:

Teiva sent in a proof that a network tree with $n$ vertices has $n-1$ edges. Teiva's proof has two parts.

Part A: Prove that every tree contains at least two vertices of degree 1

Part B: Use Part A and proof by induction to prove that a tree with $n$ vertices has $n-1$ edges

This is a more detailed structure of Teiva's proof. Click to see the Teiva's work for each step/stage.

Part A (lemma): Proof that every tree contains at least two vertices of degree 1, using the strong principle of induction

1. Check that the statement is true when $n=2$

2. Assume that the statement is true when $n=2,3,4,...,k$ for some whole number $k,$ and use this assumption to prove that the statement is true when $n=k+1$

take a tree with $k+1$ vertices and select one of those vertices. If $d$ is the order of the vertex, then the vertex is connected to $d$ sub-networks via its $d$ edges.

Prove that the $d$ sub-networks are all separate to each other and are all trees or single vertices

Firstly, we note that there can be no connection between any two of these sub-networks, other than through V. This is because, by definition, every vertex within each sub-network has a connected path to each other vertex in the subnetwork. This means each sub-network is connected, and so any connection between two of these sub-networks, aside from the pre-existing one through V, would result in a cycle inside T, which is impossible because T is a tree. Hence, eachsub-network is distinct from the others (and indeed they were earlier drawn as such. This justifies the drawing) (It should be noted that any of the sub-networks might be a single vertex, and indeed the above section is only strictly accurate if we take the single vertex as a connected network, which I shall do).

Secondly, we note that each sub-network is acyclic, as it is a sub-network of a tree (which is acyclic).

Hence, and using the previous point, each sub-network is either a lone vertex, or it is a tree.

Use the assumption to prove that the network has at least two vertices of degree 1

Let the number of such sub-trees be denoted by $t$ and the number of lone vertices be denoted by $l$. Since each sub-tree is distinct from the others, we have that $t+l=d$ (recalling that $d$ is the degree of V).

Now, by the inductive hypothesis, each of these sub-trees contains at least 2 vertices of degree 1. Then either one of these is the explicitly drawn vertex (which is connected to V and is hence not a vertex of degree 1 in T), or not. In either case, a sub-tree contributes at least one vertex of degree 1, so that at least $t$ vertices of degree 1 are contributed to T. We can then note that if some sub-network is a lone vertex, then it is a vertex of degree 1.

Then if $d\ge2,$ our lemma is true for T. Otherwise (i.e. if $d=1$) then we note that V is itself a vertex of degree 1 to T, so that our lemma is true for T.

Hence since $d\ge1$ (because T is connected), our lemma is true for T and hence for any tree of $k+1$ vertices, so that our inductive argument is complete.

3. Conclude that this means the statement must be true for all whole numbers

Teiva has proved that trees with 2 vertices have at least 2 vertices of degree 1. Teiva has also proved that a tree with $k+1$ vertices has at least 2 vertices of degree 1, as long as all trees with fewer than $k+1$ vertices have at least 2 vertices of degree 1. This means that you could use the fact that trees with 2 vertices have 2 vertices of degree 1 to prove that all trees with 3 vertices have at least 2 vertices of degree 1. Then you could use those two facts to prove that all trees with 4 vertices have at least 2 vertices of degree 1. Then you could use those facts to prove it for trees with 5 vertices, and then trees with 6 vertices, and so on. Because this goes on forever, Teiva has proved that all trees with any number of vertices have at least 2 vertices of degree 1.

That is, every tree contains at least two vertices of degree 1.

Part B: Proof that a tree with $n$ vertices has $n-1$ edges, using Part A and the weak principle of induction

1. Check that the statement is true when $n=2$

It is then (very) trivially established that every tree contains a vertex of degree 1. We then use weak induction to prove that every tree of $n$ vertices contains exactly $n-1$ edges. This theorem is true for trees of 2 vertices, as the only such tree consists of 2 vertices connected by 1 edge (as established).

2. Assume that the statement is true when $n=k$ for some whole number $k,$ and use this assumption to prove that the statement is true when $n=k+1$

Now, assume that the theorem is true for all trees of $k$ vertices, for some $k$ with $k\ge2,$ and consider a tree of $k+1$ vertices. By our lemma, this tree (call it T) may be drawn as follows:

We investigate the sub-network structure:

Firstly, it is connected, as T is connected, and the extra vertex in T clearly does not create any new paths between vertices in the sub-network.

Secondly, it is acyclic, as it is a sub-network of a tree.

Hence, the sub-network is a tree, and is indeed clearly one of $k$ vertices.

Then, by the inductive hypothesis, this sub-tree contains exactly $k-1$ edges, so that T contains $(k-1)+1=(k+1)-1$ edges, and our theorem is hence true for all trees of $k+1$ vertices.

3. Conclude that this means the statement must be true for all whole numbers

Teiva has proved that trees with 2 vertices have 1 edge. Teiva has also proved that all trees with $k+1$ vertices have k edges, as long as all trees with $k$ vertices have $k-1$ edges. This means that you could use the fact that trees with 2 vertices have 1 edge to prove that all trees with 3 vertices have 2 edges. Then you could use this fact to prove that all trees with 4 vertices have 3 edges. Then you could use this fact to prove that trees with 5 vertices have 4 edges, and then you could prove that trees with 6 vertices have 5 edges, and so on. Because this goes on forever, Teiva has proved that all trees with any number of vertices, say $n$, have $n-1$ edges.

That is, it is proven that all trees of $n$ vertices contain exactly $n-1$ edges.

Teiva added a further note:

I would like to note that this is a special case of Euler's formula for planar networks ($V-E+F=2$), and so if one had that theorem, this would be a simple problem indeed. Though it is possible that this would be no simpler than what we've just done.

Also, I'm almost positive that there's an argument to be made with an infinite walk to prove that every tree has a vertex of degree 1 (or else it would be cyclic), but I just can't nail it down properly. (Why does such a walk returning to a vertex imply a cycle?)

Imagine you start off at a vertex V of a tree, and trace a path ('go for a walk') along the edges of the tree. Either the path goes on forever (an 'infinite walk'), or it eventually ends. The only way it can go on forever is either if you have found a cycle (which may or may not involve passing back through V), or if there are infinitely many vertices. In each case, the network was not a tree. Therefore the walk must end. But it must end at a vertex with only 1 edge. Therefore the tree contains a vertex of degree 1.

Teachers' Resources

Why do this problem?

In introducing the idea of networks and graph theory this is one of the simplest results to prove. It gives learners practice in mathematical reasoning and an idea of what graphs are.

This problem can be used with KS4 students as an introduction to some of the topics covered in A-level Further Maths.

It can also be used as an introduction to the idea of induction (If we know that a graph with $n$ vertices has $n-1$ edges, what happens if we add an extra vertex?)

Possible approach

The idea of a network could be introduced through an example of connections between people (perhaps using the idea of "six degrees of Kevin Bacon" and linking some actors together via films that they have both starred in). Other real life networks, such as the London Undergorund Map, could be discussed.

You could also introduce alternative terms for some of the ideas introduced: graph for network, arc for edge, and node for vertex should be mentioned.

Consider the six given graphs and decide whether each one is connected/disconnected, planar/non-planar and cyclic/acyclic. Students could draw other networks which satisfy various conditions or could consider how the given graphs could be altered to make them connected, planar and acyclic.

Key questions

What is the simplest network you can draw?
Draw trees for networks with 1, 2, 3, 4, ... vertices. How many edges are needed?
Does every tree for a network of 5 vertices have the same number of edges?
Can you write down a rule connecting the number of edges and the number of vertices?
If we add an extra vertex to a network, what happens to the number of edges? If we add an edge to a network, what happens to the number of vertices.

Possible support

Simply Graphs gives an introduction to networks where students can think about how they would categorise networks before being introduced to the definitions in this problem.

Learners might spend a little time playing the game Sprouts. Sprouts leads to much more graph theory than this one problem, and you can read more in the Sprouts Article.

Possible extension

The connections between networks and polyhedra, and a justification of Euler's Theorem, can be found in this problem.
