A Shade Crossed
Find the area of the shaded region created by the two overlapping
triangles in terms of a and b?
Age
14 to 16
Challenge level
Problem

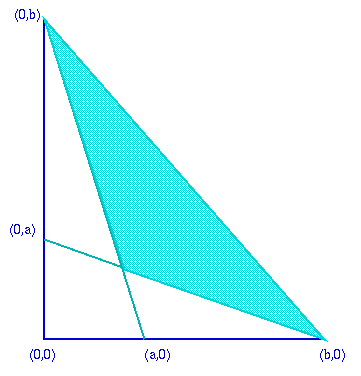

| Find the area of the shaded region in terms of $a$ and $b$? | Image
|
Student Solutions
There were two solutions from Madras College, one from Thomas, James, Mike and Euan and the other from Sue Liu which is reproduced below.
|
This triangle is a right angled isosceles triangle, the
hypotenuse being $\sqrt{2}b$. We draw a line through $A$ and point
$M$, the midpoint of the line $BC$. We draw the line $B`C`$ giving
another right angles isosceles triangle $AB`C`$, similar to
triangle $ABC$ but with sides a and hypotenuse $\sqrt{2}a$. Now $N$
is the point where the line $B`C`$ meets the line $AM$, and $P$ is
the point where $BC`$ meets $B`C$ (also on $AM$).
It is clear that triangle $PBC$ is similar to triangle $P
B`C`$ and the enlargement factor from $B`C`$ to $BC$ is $b/a$. So
the line $PM$ is $b/a$ times as long as the line $PN$. Also the
line $AN$ is half the length of $B`C`$, so it is $\sqrt{2}a/2$. The
line $AM$ is half the length of $BC$ so it is $\sqrt{2}b/2$.
|
If we let $PN$ be $x$ then we have an equation:
$$x + \frac{bx}{a} + \frac{\sqrt{2}}{2}a =
\frac{\sqrt{2}}{2}b$$
Solving this equation gives $$x =
{\frac{\sqrt{2}}{2}}{\frac{(b - a)a}{(a + b)}}$$
$PM$ is the height of the shaded triangle and $PM =
xb/a$.
Area of the shaded triangle is:
$$\frac{xb}{a} \cdot \frac{\sqrt{2}}{2} \cdot b =
\frac{b^{2}(b - a)}{2(b + a)}$$
