The Eyeball Theorem

Stage: 4 and 5 Challenge Level: Challenge Level:3 Challenge Level:3 Challenge Level:3

Tom sent in the following neat solution that uses some of the ideas suggested in the hints. He noticed that the symmetry means you only need 'half' the diagram and that two radii joining the centres of the circles to the tangents created useful pairs of similar triangles.

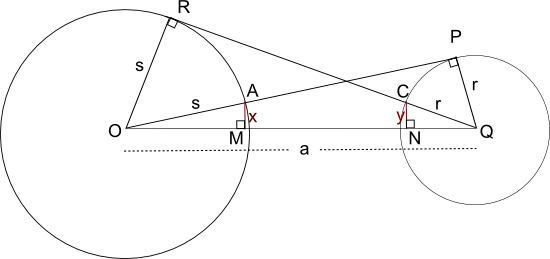

Image for eyeball proof

First I noticied that, if I drew in the radii there were similar triangles to work with.
Triangle $ ORQ $ is similar to triangle $CNQ$
This means that, using the ratio of matching sides: $$\frac{s}{a} = \frac{y}{r}$$ $$y = \frac {sr}{a}$$

Triangle $QPO$ is similar to trangle $AMO$
This means that, using the ratio of matching sides: $$ \frac{r}{a}= \frac{x}{s} $$ $$
x = \frac{sr}{a}$$

So $ x = y$.

Sue Liu of Madras College also sent a good solution to this problem.


Conjecture: $AB = CD$

Proof

We start with Sue's proof that $XY$ is the axis of symmetry of the whole shape.


$XP = XQ$ because they are two tangents from one external point.

$\angle XPY = \angle XQY = 90^{\circ}$.

$YP = YQ = r$ so $PYQX$ is a kite and $XY$ is the axis of symmetry of $PYQX$.

Similarly

$YR = YS$ because they are two tangents from one external point.

$\angle YRX = \angle YSX = 90^{\circ}$.

$XR = XS = R$ so $RXSY$ is a kite and $XY$ is the axis of symmetry of $RXSY$.

Therefore $XY$ is the axis of symmetry of the whole shape.

Sue then goes on to prove in detail that $ABDC$ is a rectangle. Her proof is an excellent piece of work though a little longer than the proof below. The following proof uses sines but it could equally well be written entirely in terms of similar triangles.



The radii of the two circles $C1$ and $C2$ are given by:

$XR = XA = R$

$ YP = YC = r$.

Let $M$ and $N$ be the midpoints of the chords $AB$ and $CD$. Note that $M$ and $N$ are on the line $XY$ joining the centres of the circles and the angles $AMX$ and $CNY$ are right angles.

As $XP$ is a tangent to the circle with centre $Y$, angle $XPY$ is a right angle.

From the right angled triangles $AXM$ and $YXP$

$$\sin\left(\angle AXM\right) = \frac{AM}{R} = \frac{r}{XY} \qquad \qquad (1)$$

Similarly $YR$ is a tangent to the circle with centre $X$ and angle $YRX$ is a right angle.

From the right angled triangles $CYN$ and $XYR$ $$\sin\left(\angle CYN\right) = \frac{CN}{r} = \frac{R}{XY} \qquad \qquad (2)$$ From equations (1) and (2) we have $$AM = CN = \frac{rR}{XY}$$ Hence $AB = CD$.
